| Product Image |
Item Name- |
Price |
 |
500.0MHz (Bandwidth)

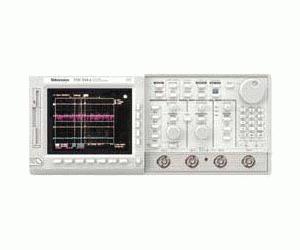

The Tektronix TDS544A digitizing oscilloscope 500 MHz bandwidth 4 channels Max. Sampling rate (1 ch) - 1GSa/s Simultaneous Max.sampling rate/ch - 250 MSa/s Max.record length... |
|
 |
500.0MHz (Bandwidth)
Sensitivity Channel 1-4: 1 mV to 10 V/div Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions) Analog Bandwidth Selections: 20 MHz, 100 MHz, and full Input Coupling: AC, DC or GND Input Impedance Selections: 1 Mohm in... |
|
 |
500.0MHz (Bandwidth)
500 MHz Bandwidth 2 GS/s Sample Rates • 4 Channels • 8-Bit Vertical Resolution • Greater than 11-Bits with Averaging • Record Length to 15,000 Points • 1 mV/div to 10 V/div Sensitivity • 1.5% Vertical... |
|
 |
500.0MHz (Bandwidth)
Bandwidth: dc to 500 MHz Vertical Sensitivity: 1 mV/div to 10 V/div 4 input channels Sample rate: 2 GSa/s (1 to 4 channels) Sweep speed: 5 s/div to 500 ps/div Color display Interfaces: GPIB, VGA out, RS-232, Centronics BNC(f) input connectors... |
|
 |
500.0MHz (Bandwidth)
500 MHz Bandwidth 2.5 GS/s Sample Rates • 4 Channels • 8-Bit Vertical Resolution • Greater than 11-Bits with Averaging • Record Length to 15,000 Points • 1 mV/div to 10 V/div Sensitivity • 1.5% Vertical... |
|
 |
500.0MHz (Bandwidth)
Bandwidth 500 MHz Number of Channels 4 ch Simultaneous Channels 4 ch Simultaneous Maximum Sampling Rate (all channels simultaneously) 5 GS/s Max. Single Shot bandwidth 500 MHz Max. Record Length 15000 pt/sec Min. Vertical Sensitivity 1 mV/div... |
|
 |
500.0MHz (Bandwidth)
Up to 500 MHzTrue Analog Bandwidth and Down to 43 ps Risetime (20% - 80%) > 400,000 wfms/s Waveform Capture Rate, powered by exclusive DPX™ acquisition technology 5 GS/s Real-time Sample Rate Exceptional Delta-time Accuracy for... |
|
 |
500.0MHz (Bandwidth)
Options: 13,1F,1M,2F Bandwidth: dc to 500 MHz Vertical Sensitivity: 1 mV/div to 10 V/div 4 input channels Sample rate: 2 GSa/s (1 channel) Sweep speed: 10 s/div to 500 ps/div Color display Interfaces: GPIB, VGA out, RS-232, Centronics BNC(f)... |
|
 |
500.0MHz (Bandwidth)
Min. Vertical Sensitivity 1 mV/div Maximum Vertical Sensitivity 10 V/div Channel to Channel Delay 50 ps Number of Bits 8 bits Input Impedance 1 MOhm Input Impedance (alternate) 50 Ohm Input Coupling AC,DC,GND Maximum Input Voltage 400 Vrms... |
|
|
500.0MHz (Bandwidth)
500 MHz Bandwidth · Sampling Rates to 2 GS/s · Up to 400,000 Waveforms/s · 4 Channels · 1% Vertical Accuracy · 8-Bit Vertical Resolution, over 11-Bits with Averaging, and Over 13-Bits with Hi-res · 1 ns Peak... |
|
