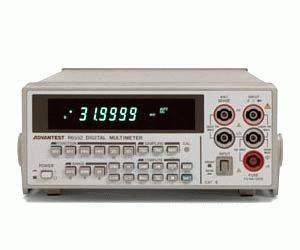

R6552 - Advantest Digital Multimeters

1.0kV (Vdc High Range)

The R6552 Series is a digital multimeter designed for system or bench use with the maximum display of 319999, featuring GPIB and RS232 interfaces with full remote control capability.
ADVANTEST''s unique multi-slope integral A/D conversion method ensures high speed and high precision measurements.
In addition to the FAST/MED/SLOW sampling modes of the conventional models, the R6552 has BURST and LONG-IT modes as well.

Maximum display : 319999
High sensitivity : DC voltage 0.1μV Resistance 100μΩ
Sampling rate : 1000/sec max. (BURST mode)
Extended integral time can be set (LONG-IT mode) in 10ms steps between 100ms and 60s for averaging repetitive signals.
It is capable of measuring AC+DC AC voltage and current
External trigger input, end-of-measurement signal output (standard)
NULL, smoothing, scaling, dB/dBm, comparator, and MAX/MIN operation capabilities
Data memory (1000 data max.)
Parameter backup (4 kinds)
High speed auto ranging for optimum setting of measurement ranges
Fluorescent display tube for enhanced viewing

Specifications

Vdc High Range

1.0kV

Digits

5.5

Measurements

DCV, ACV, Resistance, Diode, DCA, ACA, Frequency, TRMS, 2/4 Wire Resistance, dBm

More Details

Digital Multimeter
