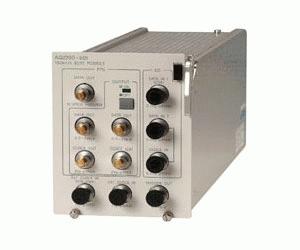

AQ2200-601 - Yokogawa Bit Error Rate Testers

11.32Gbps (Max. Data Rate)

The Yokogawa AQ2200-601 10 Gbit/s Modular BERT is a compact and powerful. It offers high quality features such as built-in internal Signal Generator (SG) and Clock Data Recovery (CDR), EO/OE interfaces, and several variable signal output functions. The AQ2200 series MultiApplication Test System is designed for universal purposes; therefore various modules for various applications can be accommodated. (i.e. Optical Power Meter, Light Source and Optical Attenuator modules).

PPG, ED and SG integrated design
Handles multiple bit rates (9.95 Gbit/s to 11.32 Gbit/s)
Adjust output amplitude, offset and crosspoint
Clock and Data Recovery (CDR) function included
Compact and lightweight
Combine with other optical modules to create a variety of tests
Combine with an optical modulator, receiver, and attenuator to measure error rate curves
64 Mbit long program pattern generation capability
Output level range: 0.5 to 2.0 Vp-p
Offset range: -2.0 V to +3.0 V
Cross-point adjustment range: 30 to 70%
Input threshold level adjustment
Optional modulator and receiver

Specifications

Max. Data Rate

11.32Gbps

Max. Clock Rate

11.32 GHz

Pattern Depth

64 Mbit

More Details

Modular BERT
