| Product Image |
Item Name- |
Price |
 |

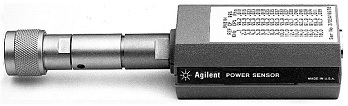

The HP/Agilent 8482H thermocouple power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 435A/B, 436A, 437A/B, and 438A power meters. It operates from 100 kHz to 4.2 GHz at levels from -10 to +35 dBm with exceptional accuracy and stability. The 8482H has... |
|
 |
The 8483A diode power sensor measures average power over the frequency range 100 kHz to 2 GHz and power range -30 to +20 dBm (50 dB dynamic range). Key Features 75 ohm input impedance power sensor Excellent SWR for reducing mismatch uncertainty Accurate calibration and traceability to US... |
|
 |
The 8484A High Sensitivity Power Sensor measures power from 0.1nW to 10 uW over a frequency range of 10MHz to 18GHz. It is furnished with the 11708A 50MHz reference attenuator for precise calibration with 1 mW power meter reference oscillator. Noise and drift have been reduced to less than 5% of... |
|
 |
The 8485A power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A, 435A/B, 436A, 437A, 438A series power meters. The 8485A provides extraordinary accuracy, stability, and lower SWR. Key Features Excellent SWR for reducing mismatch uncertainty Accurate calibration and... |
|
 |
The 8485D diode power sensor measures average power over the frequency range 50 MHz to 26.5 GHz and power range -70 to -20 dBm (50 dB dynamic range). The Agilent 11708A 30 dB attenuator is supplied with 8480 series power sensors with the "D" suffix, for calibration with the power meter 0 dBm, 50... |
|
 |
The 8487A thermocouple power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 435A/B, 436A, 437A/B, and 438A power meters. It operates from 50 MHz to 50 GHz at levels from -30 to +20 dBm with exceptional accuracy and stability. The 8487A has extremely low SWR and... |
|
 |
The 8487D diode power sensor measures average power over the frequency range 50 MHz to 50 GHz and power range -70 to -20 dBm (50 dB dynamic range). The Agilent 11708A 30 dB attenuator is supplied with 8480 series power sensors with the "D" suffix, for calibration with the power meter 0 dBm, 50 MHz... |
|
 |
The Agilent E4413A CW diode power sensor measures average power over the frequency range 50 MHz to 26.5 GHz and power range -70 to +20 dBm (90 dB dynamic range). Key Features Fast measurement speed, up to 400 readings per second with the E4416A Wide dynamic range (-70 dBm to +20 dBm) Frequency... |
|
 |
Agilent E9288B Power Sensor Cable (3.0m / 10 feet) The Agilent E9288B power sensor cable (blue) must be used with the E9320 family of peak and average power sensors, and is also compatible with all 8480 and E-series sensors. |
|
 |
Agilent E9288C Power Sensor Cable (10m / 31 feet) The E9288C power sensor cable (blue) must be used with the E9320 family of peak and average power sensors, and is also compatible with all 8480 and E-series sensors. |
|
