MS2723B - Anritsu Spectrum Analyzers

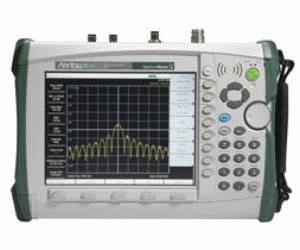

The MS2723B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems, dynamic range of 101 dB is the best in its class. The next generation of the Anritsu best selling Spectrum Master, the MS2723B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 13 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.

The B series family includes the MS2721B with performance from 9 kHz to 7.1 GHz and the MS2724B with performance from 9 kHz to 20 GHz.

An option adds spectrogram, signal strength and RSSI.  There is an option to add a user definable channel scanner option that is excellent for interference mitigation work in complicated RF environments.  Options to measure WCDMA signals are available.

Quasi-peak detection is included along with CISPR resolution bandwidths.

• Handheld, battery-operated design
• Large daylight viewable transflective color display
• Built in pre-amplifier (standard) up to 4 GHz
• Lightweight at only 7.5 pounds (typical)
• Best in class Displayed Average Noise Level < -159 dBm typical in a 1 Hz resolution bandwidth at 1 GHz
• Quick Zoom-in, Zoom-out display in 1-2-5 sequence
• RBWs: 1 Hz to 3 MHz in 1-3 sequence
• VBWs: 1 Hz to 3 MHz in 1-3 sequence
• Automatic or manual input attenuator control
• Dedicated smart measurements
• Trace Averaging
• Normal, Max hold, Min hold, user settable averaging (more than 65,000 traces can be averaged!)
• Reference Level Offset
• Three traces
• Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian)
• Capability to create two custom languages using Master Software Tools and download the languages into the MS2723B
• Store over 1000 test set-ups internally
• Save over 1000 measurement traces internally
• Save directly to compact flash memory
• Alphanumeric labeling of saved measurements
• Automatic time and date stamp of saved data
• Rechargeable/field-replaceable Li-Ion battery
• 6 Markers plus 6 delta markers or choose one marker with 6 delta markers
• Multi-segmented upper and lower limit lines
• 50-ohm Interface standard (75-ohm interface capability - instrument internally corrects for adapter loss)
• RJ45 Ethernet 10/100 Base T and USB 2.0 Interfaces
• AM, FM and SSB demodulation with built-in speaker and headset jack
