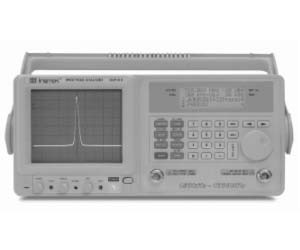

GSP-810 - GW Instek Spectrum Analyzers

1.00GHz (High end frequency limit)

Frequency Range : 150kHz ~ 1000MHz
Fully Digital Phase Locked Loop Technique Design
High Frequency Stability : ±10ppm
High Resolution of Span to Measure the more detailed signal : Zero, 2kHz ~ 100MHz /DIV
RBW : 3k, 30k, 220k, 4M
High Input Protection Level : +30dBm, ±25VDC
Reference Level Range : -30dBm ~ +20dBm
Good Noise Floor Performance : -95dBm @30kHz, -100dBm typical ; over -150dBm/Hz typical @220kHz and 4MHz RBW
Spurious Noise : < -60dB
Inter-modulation (3rd) : < -70dBc
Two Markers for Absolute and Relative Measurement
Functions : Max. Hold, Average (2 ~ 32 traces), Freeze, Peak Search, Marker to Center Function
9 Memories of Save/Recall
RS-232 Interface and Display Software to get Trace from GSP-810 to PC
Options :Power Meter, Tracking Generator, Remote Control Software

Specifications

High end frequency limit

1.00GHz

Resolution Bandwidth Max.

4MHz

Resolution Bandwidth Min.

n/a

Amplitude Range

-100 to +20 dBm

More Details

SPECTRUM ANALYZER ,150k ~ 1GHz
