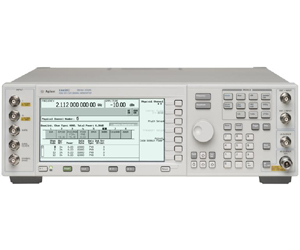

E4438C - Keysight / Agilent / HP Signal Generators

6.00GHz (Frequency Range Max.)

The Agilent E4438C ESG vector signal generator combines outstanding RF performance and sophisticated baseband generation to deliver calibrated test signals at baseband, IF, and RF frequencies up to 6 GHz. Offering an internal baseband generator with arbitrary waveform and real-time I/Q capabilities, ample waveform playback and storage memory, and a wide RF modulation bandwidth, the E4438C ESG is equipped to test complex wireless systems and their components.

The E4438C ESG is an adaptable platform with optional capabilities to customize the instrument for baseband and RF test applications ranging from simple distortion test and general purpose troubleshooting to baseband coding algorithm development, advanced transceiver design verification, and high volume manufacturing. Its modular architecture makes it easy to configure the instrument with the level of performance and signal creation capability you need today with the option to upgrade in the future.

Price shown is for typically configured model.

Frequency range 250 kHz to 1, 2, 3, 4, or 6 GHz
Output power up to +17 dBm
RF modulation bandwidth up to 160 MHz
Flexible FSK, MSK, PSK, QAM, custom I/Q, AM, FM, ÿM, and pulse
Step & list sweep frequency and power
Internal baseband generator (80 MHz RF BW)
Arbitrary I/Q waveform playback (up to 100 MSa/s)
Up to 64MSa playback memory and 1 GSa storage
Real-time I/Q symbol generation (up to 50 Msym/s)
Generate 802.11 WLAN, W-CDMA, cdma2000, 1xEV, TD-SCDMA, GSM, EDGE, cdmaOne, multitone, and more
Digital I/O, fading, and PC HDD waveform streaming with Baseband Studio
Remote control over 10BaseT LAN and GPIB
SCPI and IVI-COM drivers

Specifications

Frequency Range Max.

6.00GHz

Freq. Resolution

10.0mHz

Output Power

+13 to -136 dBm (with option: +17 to 136 dBm)

Modulation

AM, FM, Pulse, Phase, FSK, Wideband AM, I/Q, Analog, Digital, ASK, MSK, PSK, QAM

More Details

ESG Vector Signal Generator, 1, 2, 3, 4, or 6 GHz
