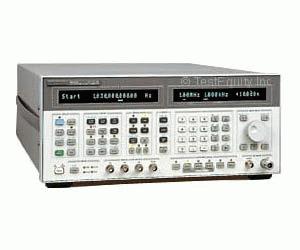

8664A - Keysight / Agilent / HP Signal Generators

3.00GHz (Frequency Range Max.)

The Agilent 8664A signal generator is suited for basic receiver testing up to 3.0 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications.
<-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
<-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
AM, FM, and optional pulse modulation
0.01 Hz frequency resolution
On-site repair and calibration

Specifications
Frequency Range Max.
3.00GHz

Freq. Resolution
10.0mHz

Output Power
-139.9 dBm to +13 dBm

Modulation
AM, FM, Pulse

More Details
High-Performance Signal Generator
