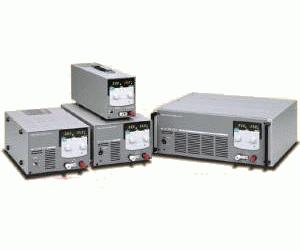

250.0V (Max. Voltage)The PAN-A Series is a high-performance, highly reliable DC power supply unit featuring regulated variable voltage. These units are suitable for use in a range of fields including research and development, quality control, and production.
PAN-A Series 700W Type Lineup:
- PAN16-30A 0 to 16V/0 to 30A
- PAN35-20A 0 to 35V/0 to 20A
- PAN60-10A 0 to 60V/0 to 10A
- PAN70-8A 0 to 70V/0 to 8A
- PAN110-5A 0 to 110V/0 to 5A
- PAN160-3.5A 0 to 160V/0 to 3.5A
- PAN250-2.5A 0 to 250V/0 to 2.5A
The PAN-A Series consists of a pre-regulator using FETs and a series regulator using power transistors, providing the high-quality output characteristic of the latter as well as the low power-source harmonic distortion of choke input type phase control. To achieve the high reliability and safety, components of sufficient derating and long-proven mounting techniques are used throughout. All models are carefully designed and furnished with over voltage protection (OVP) and various safety functions.
- Low temperature drift
- Quick transient response
- Low ripple noise voltage
- Various safety functions
- GPIB control (optional function)
- External analog control
Specifications
More Details
High Reliability DC Power Supply (CV/CC)
